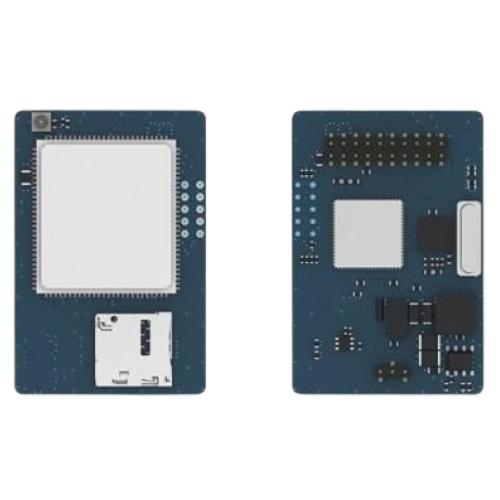

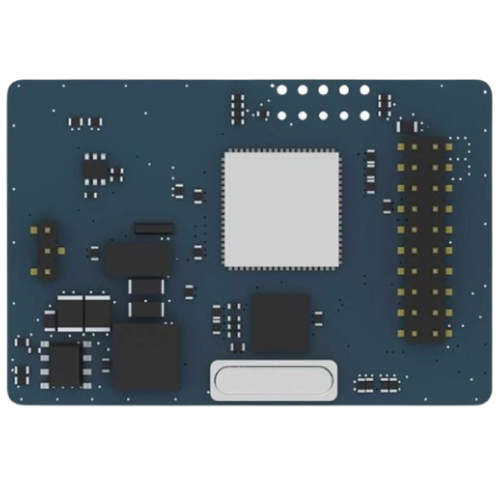

Yeastar_LTE
1.092,94 ر.س شامل الضريبة
الوصف
| Module | 4G LTE Module | |||
|---|---|---|---|---|
| Type | Module-CE/FAG | Module-E | Module-A | Module-AU |
| Frequency | FDD-LTE: B1/B3/B8/B5 TDD-LTE: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA2000 1X: BC0 CDMA2000 EVDO: BC0 GSM: 900/1800 |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 |
LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B5/B8 TD-SCDMA: B34/B39 CDMA2000 1X/EVDO: BC0 GSM: 900/1800 |
| SMS | Yes | |||
| MMS | No | |||
| Voice Call | 3G/4G Voice Call | |||
| SIM Card | 3G/4G Standard SIM Card | |||
| Data | 3G/4G Data (only S-Series supports and cannot be used as a 4G router) | |||
| 3G Data Speed | Max 384 Kbps (DL) / Max 384 Kbps (UL) | |||
| LTE Data Speed | LTE-FDD: Max 150 Mbps (DL) / Max 50 Mbps (UL); LTE-TDD: Max 130 Mbps (DL) / Max 35 Mbps (UL) | |||
| Module Insertion | [For LTE Data] S412: T_Slot3; S20 & S50: Module Slot 1; S100 & S300: Module Slot 1, Expansion Board 1 [For LTE Voice] S412: T_Slot3 or T_Slot4; no place limitation for S20/S50/S100/S300/P550/P560/P570 |
|||
| Call Waiting | No | |||
| Call Forward | Yes | |||
| RF Cable | Insert on MAIN T1 of the 4G LTE module. | |||
| Antenna | The 4G LTE module can be used with one RF cable and one antenna. (To strengthen signal, 2 RF cables can be installed but 2 antenna ports will also be occupied with the exception of S20.) |
|||
| Supported Model | S412, S20, S50, S100, S300 (Version 30.4.0.25 or higher); P550, P560, P570 | |||
